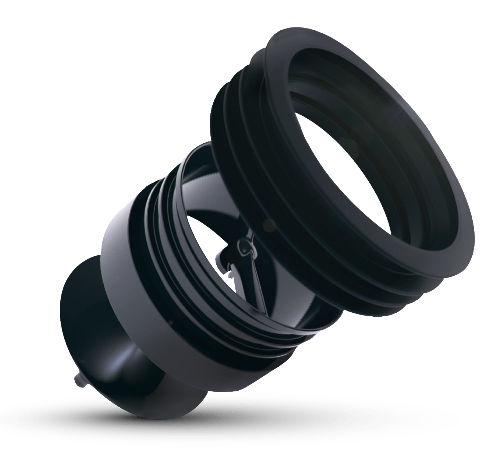

Green Drain Waterless Trap
GREEN DRAIN is the unique new standard for floor drain trap seals.
Self-cleaning – water free – protecting against odor, gases and bugs!

Install in 4 Easy Steps

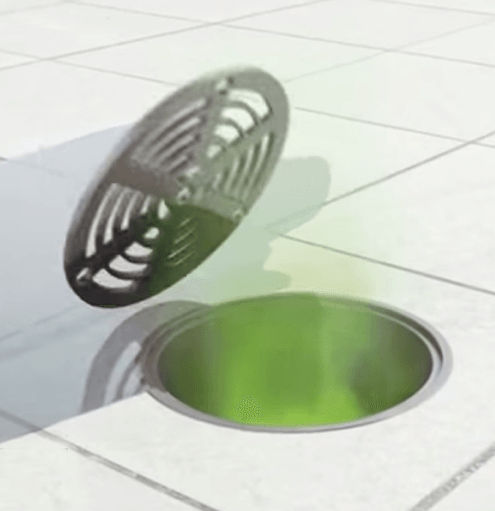

1.   Remove the grate or strainer.







2.   Match the Drain diameter with the corresponding Green Drain size.

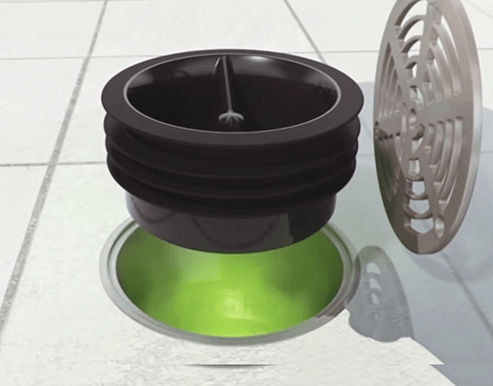

3.   Recess the Green Drain into the pipe for maximum flow of liquids, and replace the grate.

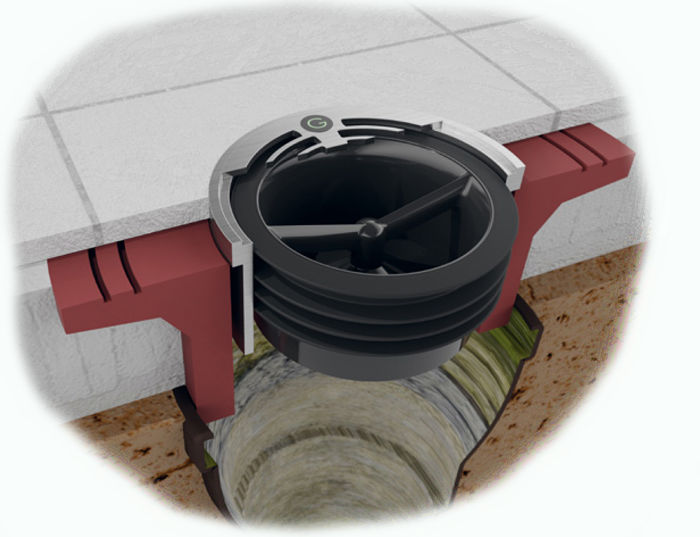

4.   Place Green Drain into the floor drain body outlet connection, or the throat of the strainer.
  • Easy to install and easy to remove
   - No Pliers needed.

• Rquires no caulk or expensive
   installation tools.

• Saves a significant amount of time,
   water, costs and energy.

• Available in various size to make retro
   fitting easy
Eliminates:

• The threat of disease carrying pests that hide in your drains. (I.e. Drain Flies, Cockroach’s, Fruit Flies, Silver Fish)
• The need to pour pesticides, chemical applicants and deodorizers down the drain.


Conserves:

• Water and water related expenses by eliminating the need for trap primers.
• Time and energy.
Reduces:

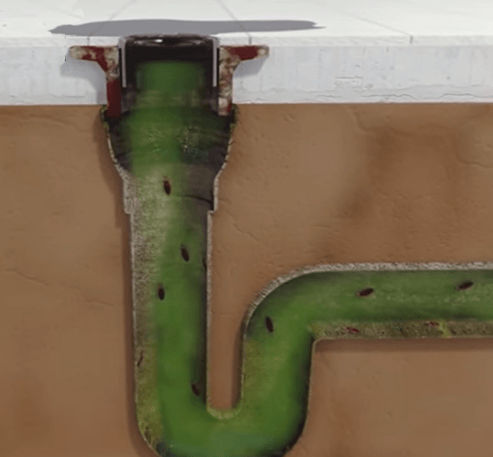

• The risk of harmful sewer gasses intruding your facility through drain lines.
• Costly chemical expenditures.
• Plumbing related call‐outs.
• Exterminator related call‐outs and call backs.
• Timely drain maintenance by Facility Staff and Plumbers.
• Sewer load.
• The chemical impact on our oceans and environment.

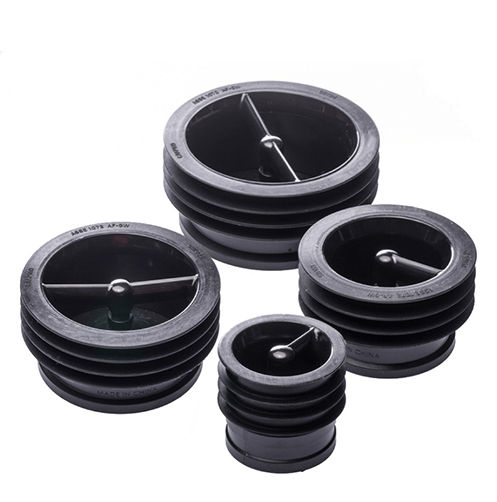

Product Sizes

Size Flow Rate
Model       Pipe size          Height L/min
GD2        50 to 58mm        51mm 45.4
GD3        75 to 85mm        51mm 128.7
GD3.5    89 to 100mm       51mm 193
GD4       102 to 110mm      51mm 276.3

(Click any of the images for larger image)
