Pipe Cameras, Reels & Controllers


Cameras





(Click Images for larger view)

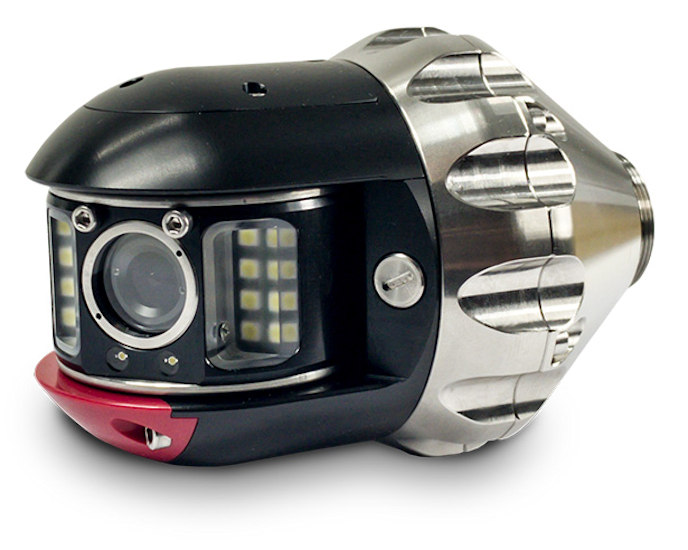

RSK-78

PAN AND TILT
COLOR-TV-CAMERA

useable from DN 100 to DN 300
suitable for bends as of 87° / DN 100




TECHNICAL DATA
pluggable camera head made out of aluminium-stainless steel combination
(78 mm / 3.1 inch diameter, 110 mm / 4.3 inch length)
weight: approx. 950 g / 2.1 lbs
waterproof to 5 bar
18 dimmable, ultrabright cold light LEDs
image sensor: 1/2.8" Farb-CMOS
high-resolution color camera module (700 lines)
wide angle lens: 85°
focus: manual (1 - ∞ cm / 0.39 - ∞ inches)
swivel range: +/- 110°
continuous rotation
professional slipping clutch

                                                                                            FEATURES
  automatic horizon compensation
automatic 0-position
automatic 90° left / right pan function
automatic 360° inspection function
internal pressure-supervision



electronic adjustable focus
monitor insertions: rotation- and angle of slew,
internal pressure in bar with alarm function in the case of pressure drop
available as PAL and NTSC

   Download a Brochure on RSK-78

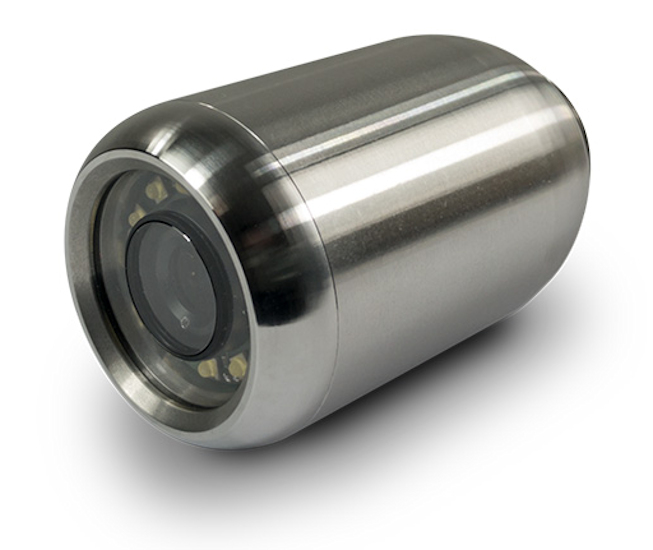

RIK-45

AXIAL-COLOR-TV-CAMERA

usable from DN 70 to DN 400
suitable for bends as of 87° / DN 100

TECHNICAL DATA
pluggable camera head made of stainless steel
(45 mm diameter, 70 mm length)
weight: ca. 450 g / 15.9 oz
automatic horizont compensation (rollmatic)
waterproof up to 5 bar
high-performance cold light LEDs (12 ultra bright LEDs)
Image sensor: 1/2.8" Color-CMOS
high-resolution color camera module (700 lines)
wide angle lens: 85°
focus: fix focus (10 - ∞ cm / 3.9 - ∞ inches)
available as PAL or NTSC version
   Download a Brochure on RIK-45

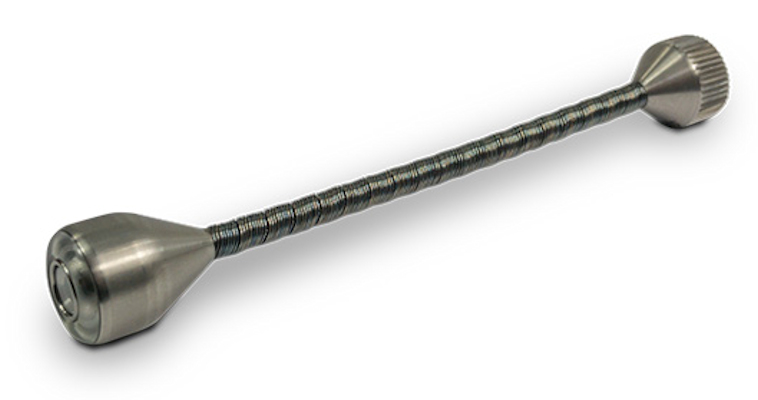

RIK-1820

AXIAL-COLOR-TV-CAMERA

useable from DN 20 to DN 70
suitable for bends as of 87° / DN 40

TECHNICAL DATA
pluggable stainless steel camera head
(18 mm / 0.70 inch diameter, 20 mm / 0.79 inch length)
weight: 30 gram / 0.07 lbs
waterproof up to 1 bar
high performance cold light LEDs (6 ultra bright LEDs)
Image sensor: 1/3" Color-CMOS
High-resolution color camera module (480 lines)
Wide angle lens: 90°
Focus: fix focus (3 - 30 cm / 1.2 - 11.8 inches)
available as PAL and NTSC version
   Download a Brochure on RIK-1820

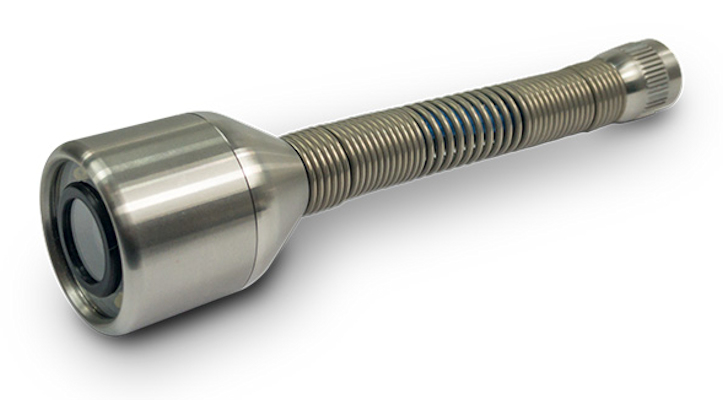

RIK-3240

AXIAL-COLOR-TV-CAMERA

useable from DN 40 to DN 150
suitable for bends as of 87° / DN 50


TECHNICAL DATA
pluggable stainless steel camera head
(32 mm / 1.3 inch diameter, 40 mm / 1.6 inch length)
waterproof up to 3 bar
high performance cold light LEDs (9 ultra bright LEDs)
weight: 130 gram / 0.29 lbs
image sensor: 1/4" Color-CMOS
high-resolution color camera module (420 lines)
wide angle lens: 90°
focus: fix focus (5 - ∞ cm / 2 - ∞ inches)
available as PAL and NTSC version
   Download a Brochure on RIK-3240
Reels



(Click Images for larger view)

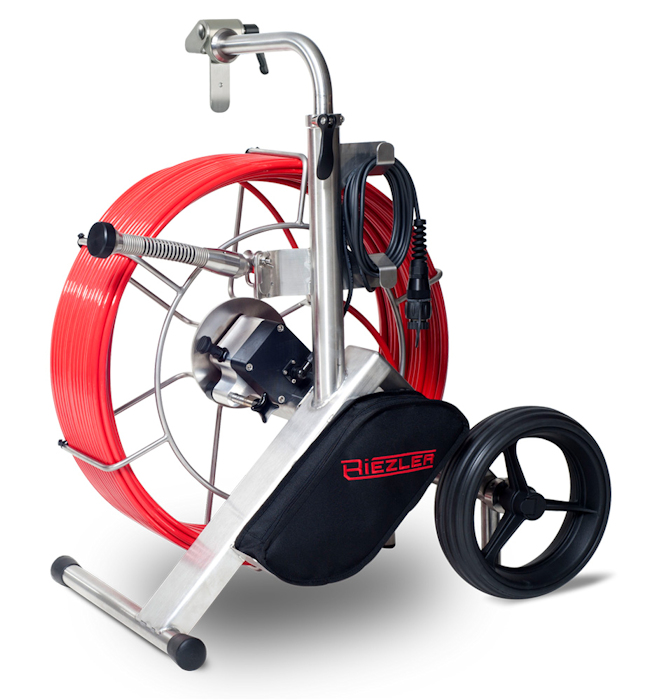

SHP-9X

Push camera system for a control unit.
Our professional-system for sanitation, house connection sewer- or sewage-inspection. Solid and persistent.

usable from DN 70 to DN 400
suitable for bends as of 87° / DN 90


REEL
stable, steady stainless steel reel
waterproof and ball-bearing axis
60 / 80 meter (197 / 262 feet) high-flexible push cable (9 mm / 0.35 inch Ø)
quick-change system for pluggable camera heads and control units
professional slipping clutch
precise length measurement thrugh integrated digit emiter
adjustable brake (no unintentionally cable unwinding)
detachable wheels for easier transportation

SPECIFICATIONS
Article number:5-0038-001 (60 meter / 196 feet) 5-0038-002 (80 meter / 262 feet)
Weight:ca. 19 kg / 42 lbs (60 m / 197 feet cable) / 21 kg / 46 lbs (80 m / 262 feet cable)
Size:660 x 440 x 730 mm / 26.0 x 17.3 x 28.7 inches (L x W x H)
Power supply:via control unit
   Download a Brochure on SHP-9X

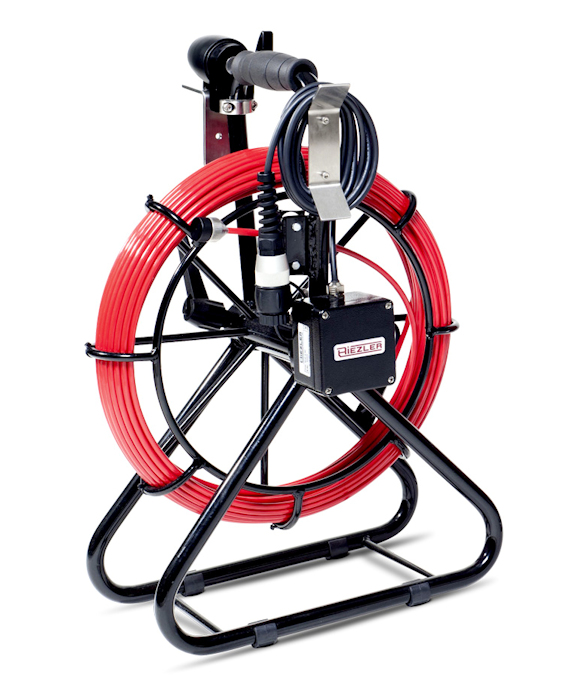

SHP-6X

Push system for a control unit.
Our smallest system for electrical installations, sanitary or house connection sewer.

usable from DN 20 to DN 150
suitable for bends as of 87° / DN 50

REEL
steady, powder-coated steel reel
30 meter / 98.4 feet high-flexible fibreglass cable (6 mm / 0.24 inch Ø)
quick-change system for pluggable camera heads and control units
professional slipping clutch
adjustable break
integrated digital meter counter


SPECIFICATIONS
Article number:5-0030-001
Weight:ca. 7.5 kg / 16.5 lbs
Size:380 x 310 x 520 mm / 15.0 x 12.2 x 20.5 inches
Power supply:via Control-Unit
   Download a Brochure on SHP-6X

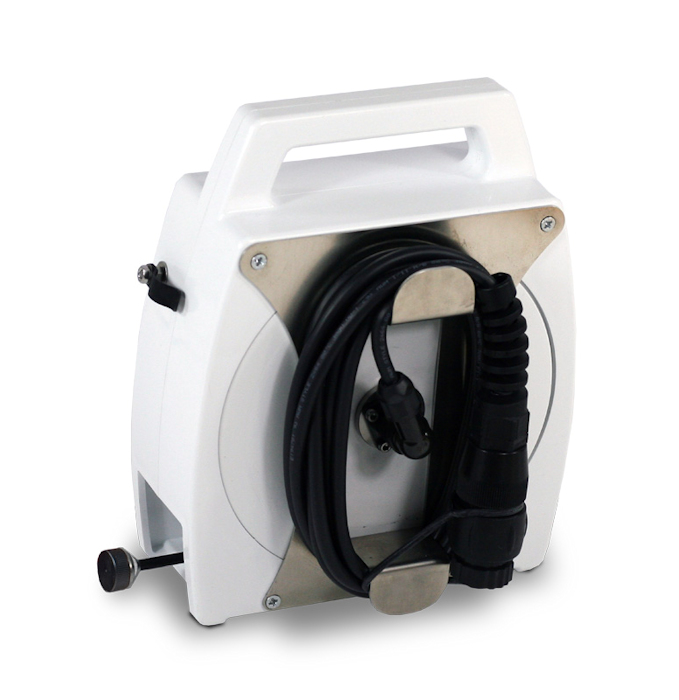

HKT-5X

Push system for a control unit. Our smallest system for electrical installations, sanitary or house connection sewer.

usable from DN 20 to DN 100
suitable for bends as of 87° / DN 40

REEL
stable plastic cable drum
15 meters high flexible push cable (5 mm Ø)
quick-change system for pluggable camera heads


SPECIFICATIONS
Article number:5-0034-003
Weight:ca. 1.5 kg / 3.3 lbs
Size:180 x 120 x 220 mm / 7.1 x 4.7 x 8.7 inches (L x W x H)
Power supply:via Control-Unit
   Download a Brochure on HKT-5X
Controllers



(Click Images for larger view)

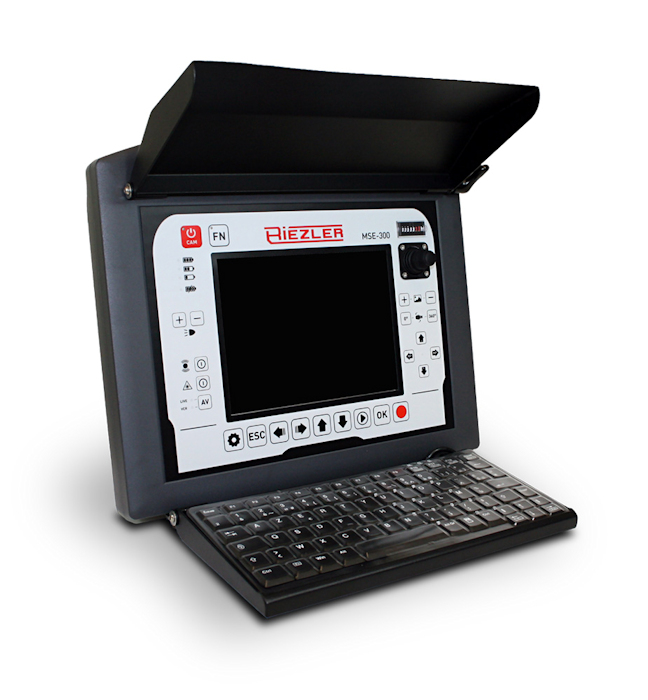

MSE-300

Compact. Mobile. Modular.
Our control unit MSE-300 –
Your central control and documentation unit
for all our push cameras.

the high resolution and daylight suitable 8" TFT display provides brilliant picture quality and together with the ergonomically located controls allows a pleasant work.
videos and pictures are saved on a SD card (up to 32GB SD cards are supported)
compatible and expandable with all our cameras, reels and manual cable drums.

  TECHNICAL DATA
- solid, shock-resistant housing with light shield
- controls for camera and video recorder control
- expandable with a hand held remote control
- high-resolution, bright 8" TFT display
- integrated MPEG-4 video recorder (avi) with snapshot function (bmp)
- digital meter counter with displaying in the video image
- text generator
        - configurable status line with date, time and meter counter
        - create and use 64 predefined words / phrases and 8 predefined pages
        - keyboard with protective foil for outdoor use
        - RS232 interface (optional)
- display of sensor values (pan and tilt angle in degrees, internal pressure in bar with alarm function)
- Li-Ion battery (extended runtime) with a battery charger and charge indicator
- 12 V jack for car operation
- interfaces: 1 x BNC Video IN, 1 x BNC Video OUT
- Weight:4,5 kg / 9.9 lbs
- Size:35 x 19 x 31.5 cm / 13.8 x 7.5 x 12.4 inches (L x W x H)
- Power supply:12 - 24 V DC via external power supply (100 - 240 V AC)

   Download a Brochure on MSE-300

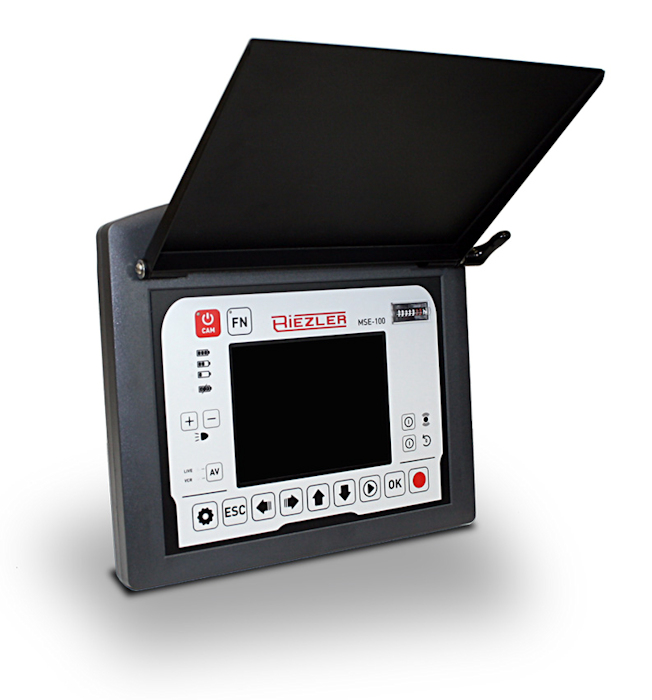

MSE-100

Compact. Mobile. Modular.
Our smallest control unit MSE-100 –
Your central control and documentation unit
for all our push cameras.

the high resolution and daylight suitable 5.6" TFT display provides brilliant picture quality and together with the ergonomically located controls allows a pleasant work.
videos and pictures are saved on a SD-Card (up to 32GB SD cards are supported)
compatible and expandable with all our cameras, reels and manual cable drums.
  TECHNICAL DATA
- solid, shock-resistant housing with light shield
- controls for camera and video recorder control
- expandable for pan and tilt cameras by a hand held remote control
- high-resolution, bright 5.6" TFT display
- integrated MPEG-4 Video Recorder (avi) with snapshot function (bmp)
- digital meter counter with displaying in the video image
- display of sensor values (pan and tilt angle in degrees, internal pressure in bar with alarm function)
- Li-Ion battery with a battery charger and charge indicator
- 12 V jack for car operation
- interfaces: 1 x BNC Video IN, 1 x BNC Video OUT
- Weight:2.4 kg / 5.3 lbs
- Size:27 x 12 x 24.5 cm / 10.6 x 4.7 x 9.6 inches (L x W x H)
- Power supply:12 - 24 V DC via external power supply (100 - 240 V AC)

   Download a Brochure on MSE-100
