Multi-Flex™ Medium Duty Plugs With By-Pass

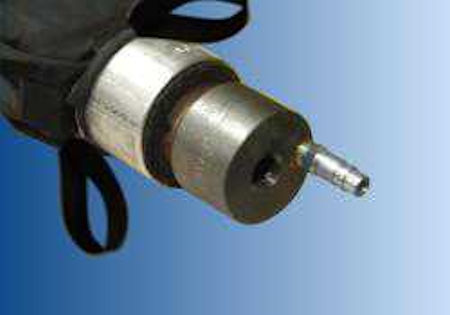

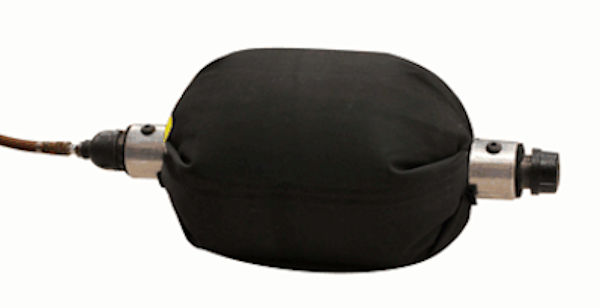

      (Click picture for larger view)




Multi-Flex™ Medium Duty Plugs Sizes: 44mm to 2133mm With By-Pass

• Ballistic Nylon Reinforced Nitrile Outer Ply for Hydrocarbon Resistance
  Pipe Diameter Max. Inflation **Pipeline Deflated Shipping
Product Code Max mm Min mm psig bar Max. Head  m Length   mm Weight  Kg
108 115-100 102 63 30 2.1 10.5 406 2.7
108 115-150 152 76 30 2.1 10.6 482 4.5
108 115-200 203 89 30 2.1 10.6 533 5
108 115-250 254 89 30 2.1 10.6 660 6
108 115-300 305 114 25 1.7 8.8 762 8
108 115-375 381 140 25 1.7 8.8 864 11
108 115-400 406 140 25 1.7 8.8 1041 13
108 115-450 457 152 22 1.5 7.7 1143 14.5
108 115-500 508 152 20 1.4 7 1270 16
108  115-600 610 152 10 0.7 3.5 1498 17
108 115-750 762 152 9 0.6 3.2 1854 21
108 115-825 838 178 9 0.6 3.2 1879 23
108 115-900 914 178 9 0.6 3.2 2133 25
108 115-1050 1067 203 9 0.6 3.2 2438 32
108 115-1200 1219 229 6.5 0.4 2.3 2717 41
108 115-1350 1372 229 5 0.3 1.9 3404 51
108 115-1500 1524 254 4.5 0.3 1.6 3708 58
108 115-1675 1676 254 4 0.3 1.4 4038 68
108 115-1800 1829 254 4 0.3 1.4 4343 82

**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ˝ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working down stream.
