Drainchem 119 Hydrostatic Test Pumps

Drainchem Hydrostatic Test Pump 119 Hydro 41TP & 119 Hydro 71TP.

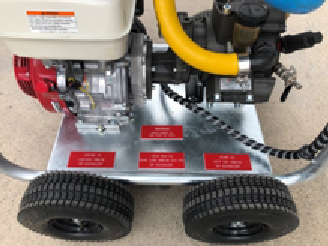

The 119 Hydro 41TP & 71TP models are an engine driven hydrostatic test machine designed to pressure test pipes and vessels for integrity and leaks. Both the 119 Hydro 41TP & 71TP consists of either a petrol or diesel engine direct coupled through a reduction gearbox to a COMET diaphragm pump.

They are designed to allow quick and effective testing of pipes up to 2000Kpa with standard gauges or 4000Kpa with optional gauges. Both come complete with all equipment to test pipes quickly. Digital gauges are required by some authorities and are available to swap out for analogue gauges at extra cost.

The pumps are fitted with an adjustable pressure/flow controller to vary the pressure up to a maximum of 580psi and flow up to 71l/m for the 119 Hydro 71TP and and flow up to 41l/m for the 119 Hydro 41TP. The flow performance is set at the maximum pump speed of 550rpm. If the speed is reduced the resulting flow will also reduce.

The Hydro 41TP can deal with low grade water due to the huge filter system.

(View All Specifications below)




(Click any image for Larger view)






The 119 Hydro 71TP unit comes complete with;
Engine Honda GX270 9Hp recoil start
Pump Comet model APS71
                               Max pressure:      40 bar (580 psi)
                               Flow @ 550rpm 71 lpm @ 0 bar
Gearbox Comet model C50050221
Pressure/Flow Controller Comet model C12040189
Filtration 150 Micron 250mm clear filter
430 Micron 250mm clear filter

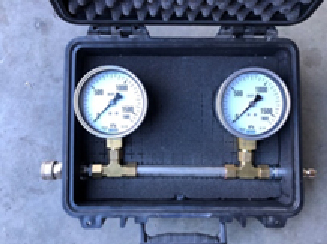

Gauges Two 100mmTraceable 0-2000Kpa gauges
Two Nata Traceable certificates (min 11 months)
Gauges contained in a tough box
Two 63mm 0-2000Kpa gauges mounted on the trolley
for pre testing without the NATA Gauges

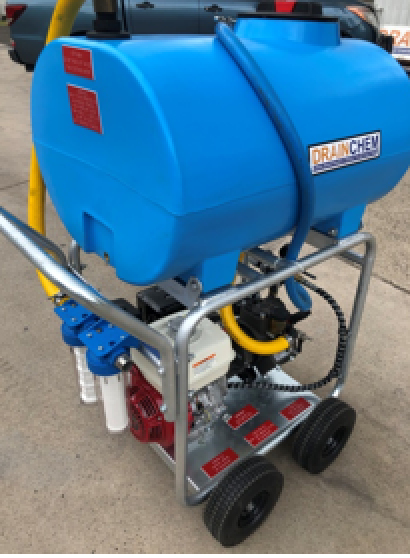

Tank 200 litre poly tank to ensure constant water supply
Tank is fitted with a low water switch to stall the engine if water supply fails
Tank is fitted with a water supply shut off valve to avoid tank over flow
Water returns to tank when outlet is shut off
Supply connection  to customer requirements
Out let hose 10M of 3/8 high pressure hose
Labels all components and oil requirements labelled
Trolley Heavy duty galvanised trolley with 10 wheels for easy manoeuvring

  (For all information including Unit Operation, Safety,
Daily Checks & Maintencance Click hereto Download PDF)



The 119 Hydro 41TP unit comes complete with;
Engine Honda GX200 6.5Hp recoil start
Pump Comet model APS41
                               Max pressure:      40 bar (580 psi)
                               Flow @ 550rpm 41 lpm @ 0 bar
Gearbox Comet model C50050221
Pressure/Flow Controller Comet model C12040189
Filtration 150 Micron 250mm clear filter
430 Micron 250mm clear filter
Gauges Two 100mmTraceable 0-2000Kpa gauges
Two Nata Traceable certificates (min 11 months)
Gauges contained in a tough box
Two 63mm 0-2000Kpa gauges mounted on the trolley
for pre testing without the NATA Gauges
Tank 200 litre poly tank to ensure constant water supply
Tank is fitted with a low water switch to stall the engine if water supply fails
Tank is fitted with a water supply shut off valve to avoid tank over flow
Water returns to tank when outlet is shut off
Supply connection  to customer requirements
Out let hose 10M of 3/8 high pressure hose
Labels all components and oil requirements labelled
Trolley Heavy duty galvanised trolley with 10 wheels for easy manoeuvring

  (For all information including Unit Operation, Safety,
Daily Checks & Maintencance Click hereto Download PDF)
