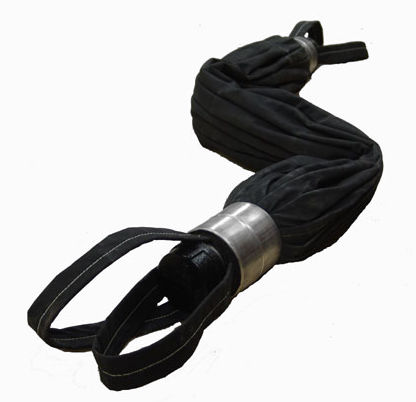

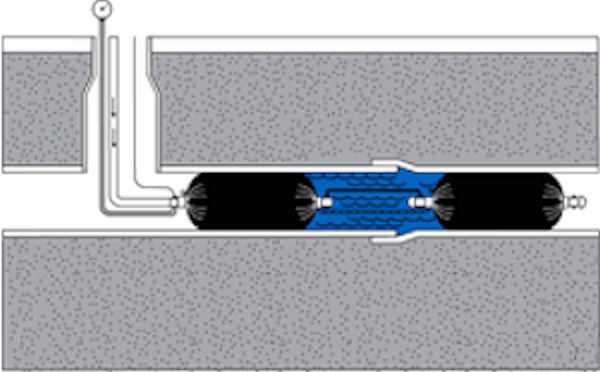

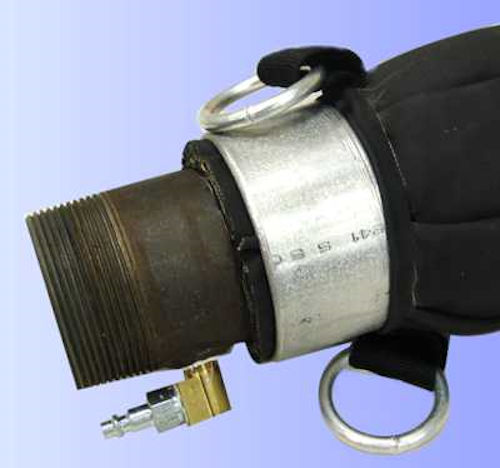

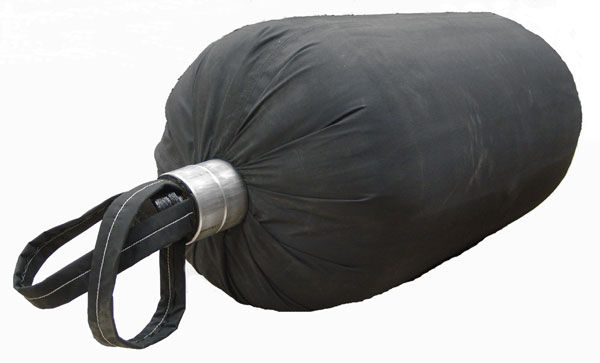

Multi-Flex™ Heavy Duty Plugs With By-Pass










      (Click picture for larger view)








Multi-Flex™ Heavy Duty Plugs Sizes: 50mm to 1829mm With By-Pass



  Pipe Diameter Max. Inflation Pipeline Deflated Shipping
Product Code Max mm Min mm psig bar Max. Head  m Length   mm Weight  Kg
108 125-100 102 89 25 1.7 8.8 432 5
108 125-150 152 115 25 1.7 8.8 610 7
108 125-200 203 127 25 1.7 8.8 686 11
108 125-250 254 127 25 1.7 8.8 991 12
108 125-300 305 140 25 1.7 8.8 1118 17
108 125-375 381 147 25 1.7 8.8 1347 23
108 125-400 406 147 25 1.7 8.8 1423 25
108 125-450 457 152 25 1.7 8.8 1550 29
108 125-500 508 166 25 1.7 8.8 1702 31
108 125-600 610 203 25 1.7 8.8 2007 35
108 125-750 762 216 25 1.7 8.8 2464 37
108 125-825 838 229 25 1.7 8.8 2718 40
108 125-900 914 254 20 1.4 7 3023 71
108 125-1050 1067 280 18 1.2 6.3 3429 79
108 125-1200 1219 305 15 1 5.2 3836 87
108 125-1350 1372 331 11 0.7 3.8 4598 101
108 125-1500 1524 356 8 0.5 2.8 4903 107
108 125-1675 1676 356 7.5 0.5 2.6 5334 118
108 125-1800 1829 381 7 0.4 2.4 5766 128
**Inflatable Plug Warning: Maximum head pressures that a pipe plug may restrain can only be estimated. Slippage is influenced by many factors including fluid in the pipe, coefficient of pipeline friction, pressure required to inflate the plug, and accuracy of pressure gauges. Generally, a Multi-Flex™ Inflatable Plug inserted fully into pipeline will begin slipping between 50% and 80% of the inflation pressure if it has an inflated pipe contact length of 1 ˝ to 2 times the diameter, but even a head pressure of 50% of the inflation pressure may cause slippage with some liquids. The inflation pressure is also subject to temperature change and debris or protrusions in the pipeline that could rupture the plug. The inflation pressure should be monitored and plugs anchored and/or mechanically blocked when slippage could cause property damage or injury. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage. NEVER use an inflatable plug as the only means of protection for personnel working down stream.
