By design, the Smoke
Blowers optimize "dry smoke" output eliminating the wet
smoke and mess
typical of other liquid smoke systems.
Blowers can also be used for fast ventilation of sewerage
collection systems and closed areas.
Superior Blowers
(Click on images for larger
view)

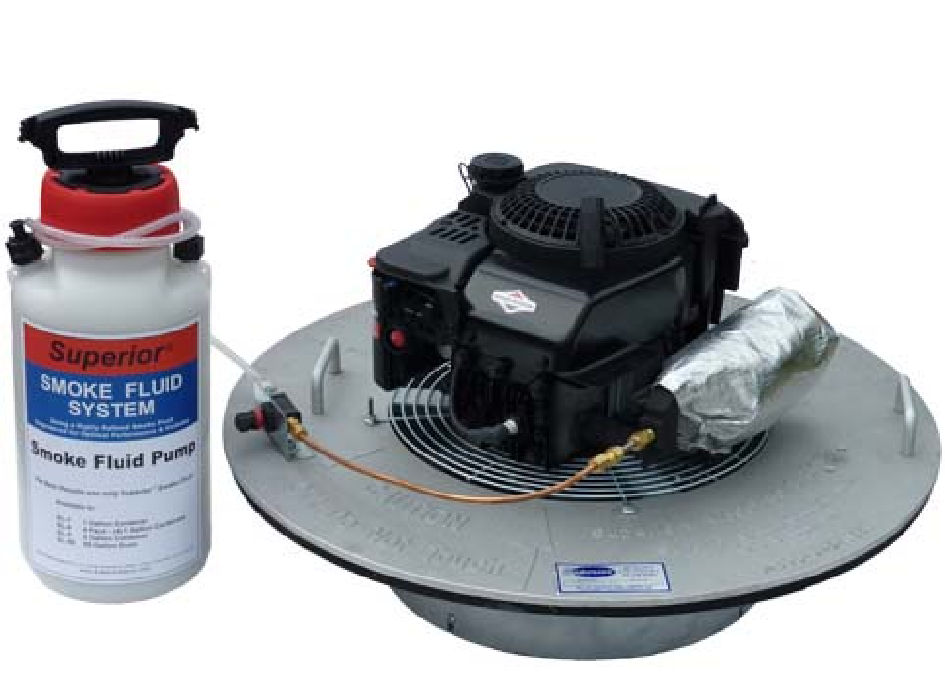

Model 154 30SB
Models 154 25SB/154
20SB
• The Superior® Fluid Smoke Systems
are safe, inexpensive and easy to use. Superior® Smoke Fluid
is a proprietary blend, specially formulated for optimum
performance in Sewer Testing
• All Blowers are single unit sturdy metal construction with
carrying handles and 27 1/2 in. custom fiberglass base.
• Superior® Stainless steel, precision machined orifice
minimizes the chances of “overloading” the smoke heating
chamber.
• Superior® Smoke heating chamber is much larger than
standard muffler type smokers, thus extending the time
available for fluid to convert to smoke. The heating chamber
is insulated and baffled to retain heat and maximize smoke
production.
• Precision valve provides maximum control.
Model
154 30SB
154 25SB
154 20SB
Application
manhole
manhole
manhole
Auxillery outlet
No
Yes
Yes
Engine Brand
Briggs & Statton
Briggs & Statton
Briggs & Statton
Power
5.0hp
3.5 hp
3.5 hp
Fuel
Petrol
Petrol
Petrol
Output lpm
121,000
113,000
51,000
Weight
30Kg
28Kg
28Kg
Construction
Cast alloy
Cast alloy
Cast alloy
Fan type
10 blade propeller
Drum
Drum
Base Diameter
762mm
700mm
700mm
Superior Smoke Fluid
154 205LS
(205 Lt)
154 20LS (20 Lt)
154 5LS (5
Lt)
Demonstration Videos
Smoke Testing
Drainchem Supplies Smoke Testing Solutions
Drainchem is a well-known and respected name as one of the leading Australian suppliers of pipe maintenance and testing equipment, including smoke testing equipment. Smoke testing is one of the most cost-effective solutions to discover leaks and defects in a sewer line and other drainage pipes. With our selection of high-quality items at affordable prices, we have everything you need to perform smoke testing.
How Often Do I Need Smoke Testing

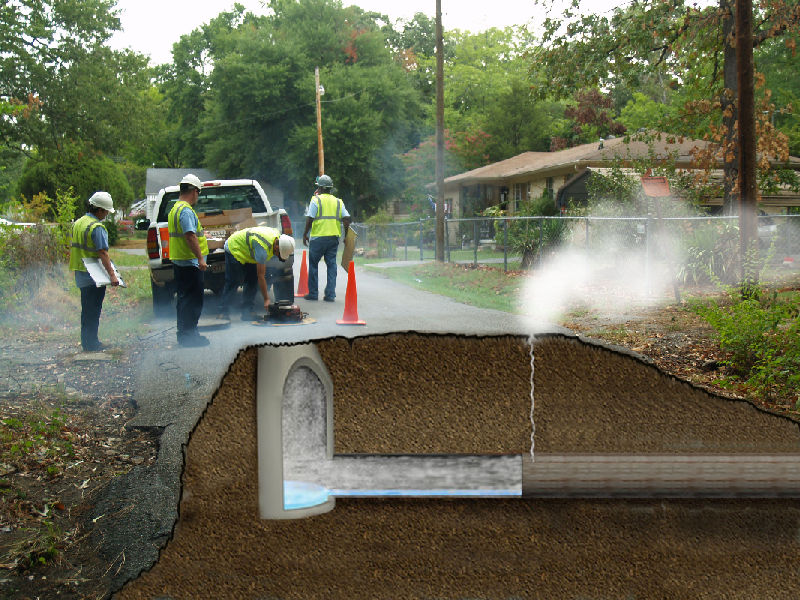

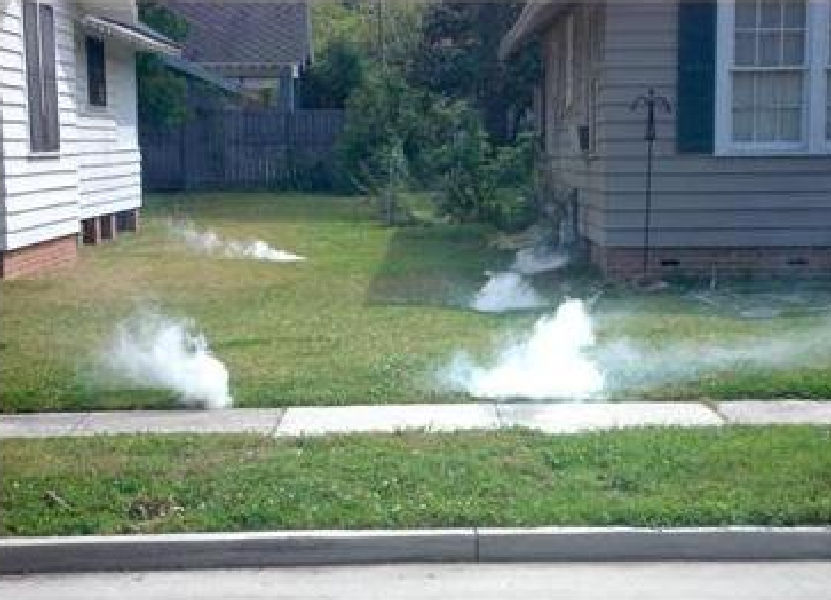

Smoke testing is a powerful tool used to discover leaks in drainage and sewer pipes. It can find leaks in residential drains, storm drains, sewers and more. It is a cost-effective method of detecting leaks without digging up the pipe completely. Here are a few examples where smoke testing can be used and can save you time:
For residential buildings, the plumbing should be inspected for leaks every two years. For plumbers focused on domestic issues, when there are leaks in drainage pipes, smoke testing will help you find the hole quickly, so you know exactly where to dig.
Smoke testing sewer and storm drains can be a huge time saver for city workers as they hunt for leaks. It requires less time than other methods as well as a smaller crew to perform the same work.
Even if you only occasionally perform leak tests that could benefit from smoke testing, with our affordable prices, you can have the equipment ready for when you do need it.
Common Misconceptions People Have About Smoke Testing
While smoke testing is one of the best tools to find leaks in sewer and drainage pipes, there are misconceptions about how it works and the smoke involved. To help you respond to these misunderstandings, here are a few of the most common along with the truth of the matter:
The smoke used in this type of testing is artificially created and does not pose a fire hazard. It is non-toxic and will not leave a stain or residue behind. While it is smoke and might cause minor irritation in sensitive individuals, it does not affect plants or animals.
Under normal circumstances, smoke shouldn’t enter a structure. Before using smoke testing, run water through all the drains in the home. It is especially crucial for the pipes that are not used often.
If the smoke does get into the building during testing, it indicates a leak or other issue that needs to be addressed.
What Customers Stand to Gain if They Use Drainchem
Customers who come to us for their smoke testing and other pipe maintenance and testing equipment gain the knowledge and experience we have earned in our twenty-five years in the industry. We have a deep understanding of the equipment and supplies we offer and only stock the highest quality of products, products that suit our customers’ needs. If you are interested in learning more about our products or have any questions, contact us today.
